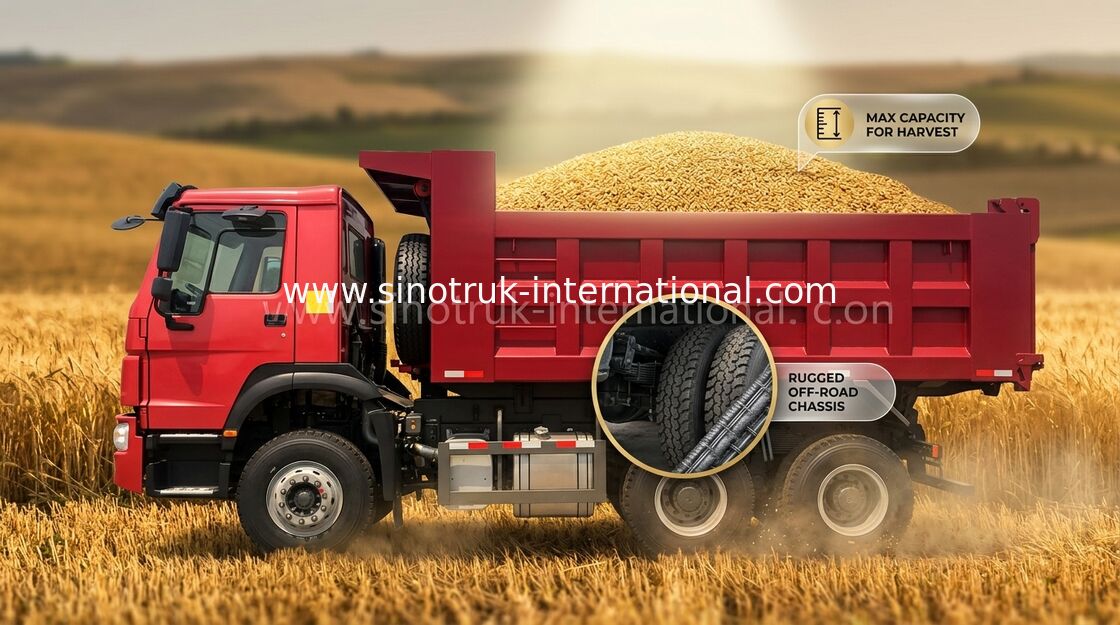

40 Tons Euro II Tipper Dump Truck 10 - 25CBM Diesel Engine Low Fuel Consumption

40 Tons Euro II Tipper Dump Truck 10 - 25CBM Diesel Engine Low Fuel Consumption

  • 40 Tons Euro II Tipper Dump Truck 10 - 25CBM Diesel Engine Low Fuel Consumption
  • 40 Tons Euro II Tipper Dump Truck 10 - 25CBM Diesel Engine Low Fuel Consumption
  • 40 Tons Euro II Tipper Dump Truck 10 - 25CBM Diesel Engine Low Fuel Consumption
  • 40 Tons Euro II Tipper Dump Truck 10 - 25CBM Diesel Engine Low Fuel Consumption
40 Tons Euro II Tipper Dump Truck 10 - 25CBM Diesel Engine Low Fuel Consumption
Thông tin chi tiết sản phẩm:
Place of Origin: China
Hàng hiệu: SINOTRUK HOWO
Chứng nhận: ISO/3C/BV/IFA/SGS
Model Number: ZZ3257N3847A
Thanh toán:
Minimum Order Quantity: 1 Unit
Giá bán: USD40000-USD42000/UNIT)negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship
Delivery Time: 25 working days after received your advance payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3,000units per month
Tiếp xúc
Chi tiết sản phẩm
Product Name: Tipper Dump Truck Model: ZZ3257N3847A
Drive type: RHD 6X4 Emission Standard: Euro 2
Engine: WD615.47, 371HP Cargo body: 5800*2300*1500mm
Loading capacity: 30-40tons
Điểm nổi bật:

heavy dump truck

,

sinotruk howo dump truck

Tipper Dump Truck 6X4 371HP 30-40Tons 10-25CBM Middle Lifiting hydraulic cylinder



Description:



Tipper Dump Truck 6X4 371HP 30-40Tons 10-25CBM Middle Lifiting hydraulic cylinder

Be comprehensive with Euro2 and Euro3 engine equipped.
Driving type: 4×2, 4×4 6×2, 6×6 ,6×4, 8×4 and so on.

Power range: 266HP - 420HP.



It is super art in domestic and abroad auto field, full expression of heavy duty truck concept. Delicate design, excellent technology, which will dazzle you as groundbreaking works

Top configration: Discal brakes +EVB,ABS+ASR+EBL+TPM,More Powerful electronic management system



New HOWO dump truck, High Quality , More Lighter,

High Level Comfortable:Cabin 4 point full -floating air suspension ,adjustable steering wheel with various heightsand angles.air suspension seat, Cruise Constant Speed System,MINI Player .electrical control glass and mirror, ATM Gearbox bunk with AC.







Specification:



Tipper Dump Truck 6X4 371HP 30-40Tons 10-25CBM Middle Lifiting hydraulic cylinder
Model ZZ3257N3847A
Drive Type 6×4
Engine

WD615.47 , 371HP( Euro II)

6 cylinder in-line with water cooling, turbo-charging & inter-cooling, 4 stroke electronic fuel injection diesel engine

Displacement : 9.726L

Cabin HW76 lengthened cab(with one sleeper, air-conditioner and new-style seat)
Transmission HW19710(10 forwards & 2 reverses)
Front Axle 1×HF9 ( 9 Tons)
Driving Axle HC16, 16Tons
Steering ZF8118 hydraulic steering with power assistance.
Clutch

Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating

with air assistance

Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
Wheel base 3800+1350(mm)
Overall dimension 8575×2496×3450(mm)
Cargo body

5800×2300×1500(mm),Bottom:8mm, Side:6mm

The curb weight 12200(Kg)
Gross weight 25000 kg
Max. speed 75km/h
Color White, red, green, golden and so on.




Applications:



It used for Mining industry, Construction business, docks and so on.



Competitive Advantage:



1) you can choose Front lifting type and Middle lifting type which you prefered

2) The hydraulic sytem using HYVA brand or Domestic famouse brand

3) fast delivery time, we can arange production according to your needs exactly and quickly

4) professional import and export dealing precedure, make customs clearance more high efficiency

5) competive price, cost-effective

6) low fuel consumption
7) strong enough engine
8) with all kinds of truck model, which can fulfil your requirements

9) all kinds of cargo body structure can be designed and produced according to your request,

make it have light curb weight , high rigidity , high loading capacity
10) using the high strength steel, make it has a long service life
11) The optimized hydraulic control system helps to avoid wrong operation, it has higher

safety and running efficiency.
12) excellant apperance of cabin, safety, reliable

13) quick and efficient spare parts supply bring you more convenient



40 Tons Euro II Tipper Dump Truck 10 - 25CBM Diesel Engine Low Fuel Consumption 040 Tons Euro II Tipper Dump Truck 10 - 25CBM Diesel Engine Low Fuel Consumption 1
