Place of Origin: | China |
Hàng hiệu: | SINOTRUK HOKA |
Chứng nhận: | ISO/3C/BV/IFA/SGS |
Model Number: | ZZ3255N3846B1 |
Minimum Order Quantity: | 1 Unit |
---|---|
Giá bán: | USD38000-USD42000/UNIT)negotiation |
Packaging Details: | Nude or Waxing in Roro or bulk ship |
Delivery Time: | 25 working days after received your advance payment |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 3,000units per month |
Product Name: | Tipper Dump Truck | Model: | ZZ3255N3846B1 |
---|---|---|---|
Drive type: | LHD 6X4 | Emission Standard: | Euro 2 |
Engine: | WD615.47, 371HP | Cargo body: | 5800*2300*1500mm |
Loading capacity: | 30-40tons | Transmission: | HW19710 |
Steering: | ZF Brand | ||
Điểm nổi bật: | heavy dump truck,sinotruk howo dump truck |

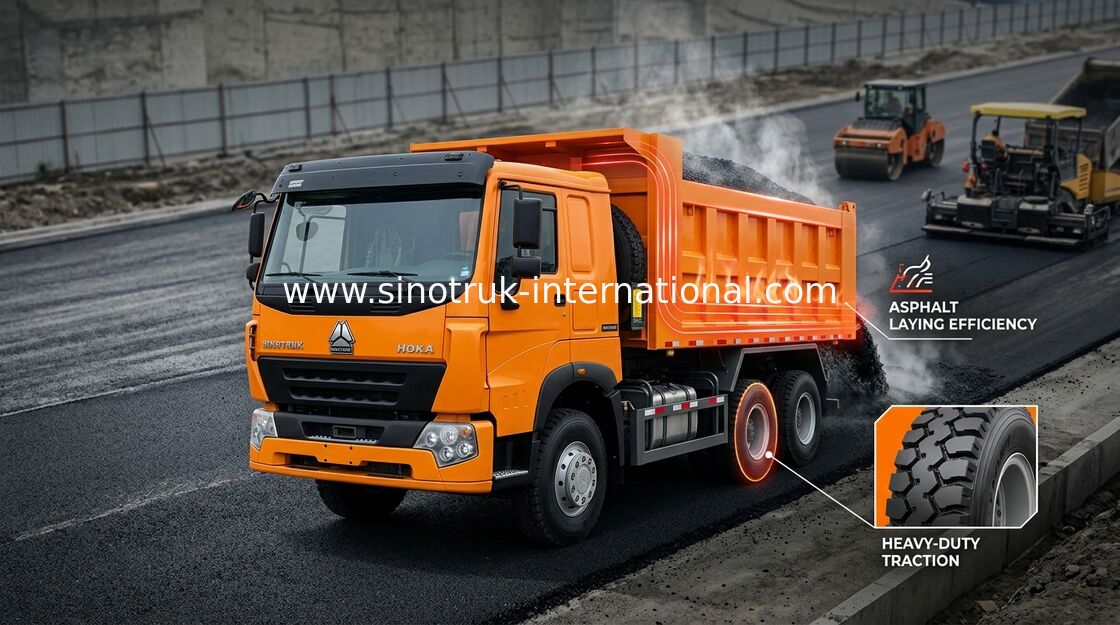

SINOTRUK Dump Truck LHD 371HP 6X4 30 - 40tons for Loading Construction material
Description:
SINOTRUK HOKA Dump Truck LHD 371HP 30 - 40tons for Loading Construction goods
HOKA brand is the Leader of Heavy Duty Truck Industry Driving King On The Road.
High Quality , More Lighter . High Level Comfortable:Cabin 4 point full -floating air
suspension ,adjustable steering wheel with various heightsand angles.air suspension seat,
Cruise Constant Speed System,MINI Player .electrical control glass and mirror,ATM
Gearbox ,bunk with AC.
Primer and topcoat coating in Chinese's independent research and development of the new paint line, advanced equipment and high-quality paint makes the vehicle paint life, cleanliness, brightness, corrosion resistance and adhesion have reached or exceeded the international level.
The beautiful and the atmosphere, a large windscreen gives you a broader view; the main combination of rearview mirror, rearview mirror and wide-angle rearview mirror with electric adjustment function and electric heating function. The drag coefficient as low as 0.57, significantly reduce vehicle fuel consumption, to reach the world advanced level.
The combined design of the new headlight assembly, the headlights, headlight, position lamps, auxiliary high beam headlight, fog light as a whole, saves the installation space. Lamps scattered layout, modeling novel, visual effect is concise and lively, provides a good view of the observation and for driving at night. The headlight dimming and lighting replace in the headlight rear connecting rod design using light regulating mechanism, a more accurate and convenient.
The side of the streamline form to give a dynamic flow of people; the same channel with the spoiler to complement each other.
Specifications:
SINOTRUK HOKA Dump Truck LHD 371HP 30 - 40tons for Loading Construction goods | ||||
Model | ZZ3257N3847N1 | |||
Drive Type | 8×4 | |||
Engine |
|
|||
Cabin | A7-W lengthened cab(with one sleeper, air-conditioner and new-style seat) | |||
Transmission | HW19710(10 forwards & 2 reverses) | |||
Front Axle | 1×HF9 ( 9 Tons) | |||
Driving Axle | HC16, 16Tons | |||
Steering | ZF8118 hydraulic steering with power assistance. | |||
Clutch |
Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance |
|||
Rim/ Tire | 11.00R20,12.00R20,12.00R24 Radial tire | |||
Wheel base | 3800+1350(mm) | |||
Overall dimension | 8575×2496×3450(mm) | |||
Cargo body | 5800×2300×1500(mm),Bottom:8mm, Side:6mm | |||
The curb weight | 12300(Kg) | |||
Gross weight | 25000 kg | |||
Max. speed | 75km/h | |||
Color | White, red, green, golden and so on. |
Applications:
working for Mining industry, Construction business, docks, to transport soil, sand, stones and so on.
Competitive Advantage:
1)fast delivery time, we can arange production according to your needs exactly and
quickly
2) professional import and export dealing precedure, make customs clearance more high efficiency
3)competive price, cost-effective
4)low fuel consumption
5) strong enough engine
6)Optimized cargo body structure,light weight,high rigidity,large loading capacity
7)Using the high strength steel,it has long service life
8)Optimized the sealing structure has the better sealing effect.
9)Multiple box structures and device selections
9)The intelligent hydraulic control system helps to avoid error operation, it has higher safety and
running efficiency.
10)with all kinds of truck model, which can fulfil your requirement
12)the key parts adopt the world's top technology products
13)based on strong technical support and top level technology make the trucks with high
quality and more reliable
14)quick and efficient spare parts supply bring you more convenient
