Place of Origin: | China |
Hàng hiệu: | SINOTRUK T5G |
Chứng nhận: | ISO/3C/BV/IFA/SGS |
Model Number: | ZZ1317N466GD1 |
Minimum Order Quantity: | 1 Unit |
---|---|
Giá bán: | USD48000-USD48500/UNIT)negotiation |
Packaging Details: | Nude or Waxing in Roro or bulk ship |
Delivery Time: | 25 working days after received your advance payment |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 2,000units per month |
Min. Temperature: | -18℃ | Model: | ZZ1317N466GD1 |
---|---|---|---|
Product Name: | refrigerated delivery truck | Drive type: | LHD 8X4 |
Emission Standard: | Euro 4 | Engine: | MC07.31-40, 310HP |
Loading capacity: | 40 Tons | Transmission: | HW13710C |
Điểm nổi bật: | refrigerated box truck,refrigerated food truck |

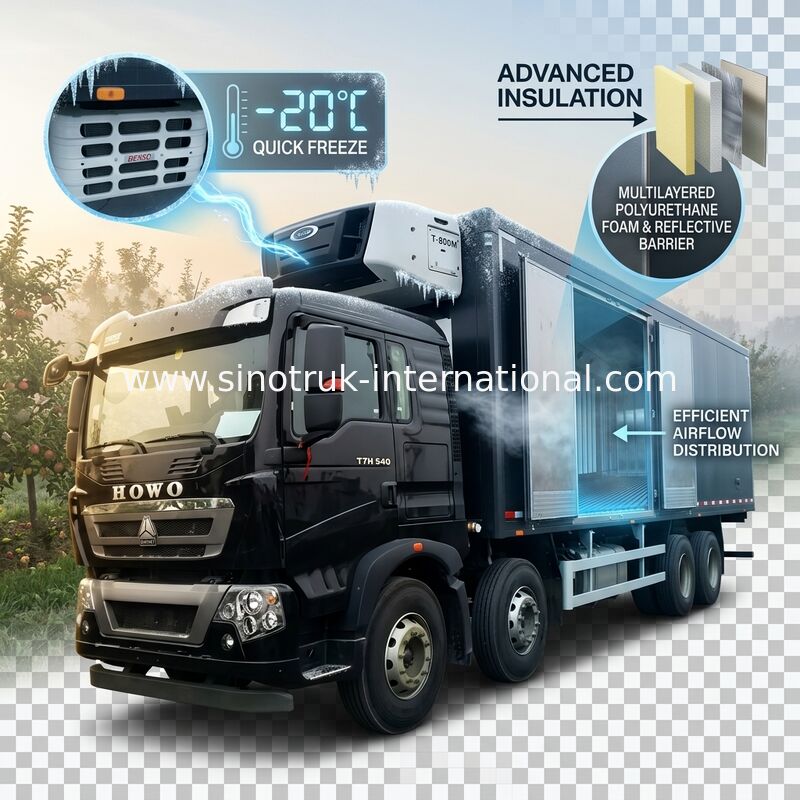

HOWO T5G LHD 8×4 Frozen Foods Delivery Truck 40 Ton Low Energy Consumption
Description:
HOWO T5G LHD 8×4 Frozen Foods Delivery Truck 40 Ton Low Energy Consumption
Refrigerated truck is one kind of closed van truck which is used to transport the frozen
or fresh goods, was fitted with the refrigerating unit device and polyurethane thermal
insulation van and it is refrigeration special use transport truck, usually used for
transporting frozen foods ( freezer truck ), dairy ( milk truck ), vegetables and fruits
( fresh goods transport vehicle ), vaccine and drug ( vaccine vehicles) etc..
The whole body is injected into the foaming metal skin structure, and the first generation refrigeration vehicle manufacturing enterprise adopts the process, because the metal material exists on the box body, and is easy to form a large number of cold bridges;
On the other hand, injection foaming heat insulation layer in the inner quality is not easy to find, not easy to guarantee; moreover, the foam material as insulation material and binder, easy to produce defects such as bond fragile, thermal insulation effect is not ideal, heat leakage rate (the second stage high coefficient of heat).
Specification:
HOWO T5G LHD 8×4 Frozen Foods Delivery Truck 40 Ton Low Energy Consumption | |
Chassis Model |
ZZ1317M466GD1 |
Drive Type |
8×4 |
Engine |
MC07.31-40, 310HP, Euro4 |
Cabin |
HW76 lengthened cab(with one sleeper, air-conditioner and two new-style seat) |
Transmission |
HW13710(10 forwards & 2 reverses) |
Front Axle |
153 |
Driving Axle |
153 |
Clutch |
hydraulically operating with air assistance |
Rim/ Tire |
11.00R20,12.00R20,12.00R24 Radial tire, 295/80R22.5, Tubeless tire |
Wheel base |
1800+4600+1350(mm) |
Van board material |
polymer composites |
Dimension of cargo body |
49CBM(8600*2300*2450mm) |
Refrigerator |
XL-300, -18C0 |
Overall dimension |
11890×2500×3650(mm) |
The curb weight |
13060(Kg) |
Gross weight |
31000 kg |
Max. speed |
95km/h |
Color |
White, red, green, golden and so on. |
Applications:
Refrigerated Truck can widespread use in transportation of all kind of frozen food, vaccinum, vegetables and fruit.
Competitive Advantage:
1) Our company's production of circular easy brand refrigerator car introduced Italy,
Germany, the United States overall polyester foam technology, and high strength fiber
plastic and other material manufacturing technology and equipment
2) so that our company refrigeration, heat preservation technology level basic reached
world advanced water level.
3) Refrigeration, heat preservation car body with light, high strength, good heat
insulation performance, high temperature stability, no pollution, oxidation, easy
maintenance, but also has low noise, low energy consumption, low failure rate, food
preservation effect is good and so on a series of advantages
4) A lot of technical indicators and the world's advanced level is close to the fully
closed polyurethane plate bonded glass steel structure, this product is light weight,
low heat leakage.
5)with all kinds of truck model, which can fulfill your requirement
6) the key parts adopt the world's top technology products
7) based on strong technical support and top level technology make the trucks with high
quality and more reliable
8) competitive price, cost-effective
9) quick and efficient spare parts supply bring you more convenient
10) fast delivery time, we can arange production according to your needs exactly and quickly
11) professional import and export dealing precedure, make customs clearance more high efficiency
