Tow Tractor Trailer Truck LHD 6x4 371HP Flat Roof Cabin SINOTRUK HOWO Truck

Tow Tractor Trailer Truck LHD 6x4 371HP Flat Roof Cabin SINOTRUK HOWO Truck

  • Tow Tractor Trailer Truck LHD 6x4 371HP Flat Roof Cabin SINOTRUK HOWO Truck
  • Tow Tractor Trailer Truck LHD 6x4 371HP Flat Roof Cabin SINOTRUK HOWO Truck
  • Tow Tractor Trailer Truck LHD 6x4 371HP Flat Roof Cabin SINOTRUK HOWO Truck
  • Tow Tractor Trailer Truck LHD 6x4 371HP Flat Roof Cabin SINOTRUK HOWO Truck
Tow Tractor Trailer Truck LHD 6x4 371HP Flat Roof Cabin SINOTRUK HOWO Truck
Thông tin chi tiết sản phẩm:
Place of Origin: China
Hàng hiệu: SINOTRUK HOWO
Chứng nhận: ISO/3C/BV/IFA/SGS
Model Number: ZZ4257S3241W
Thanh toán:
Minimum Order Quantity: 1 Unit
Giá bán: USD36500-USD37000/UNIT)negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship
Delivery Time: 20 working days after received your advance payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 4,000units per month
Tiếp xúc
Chi tiết sản phẩm
Product Name: Tractor Truck Model: ZZ4257S3241W
Drive type: LHD 6X4 Emission Standard: Euro 2 or Euro3
Engine: D12.38, 380HP Fifth Wheel: #90
Traction capacity: 60-70tons Color: According to your requests
Điểm nổi bật:

tractor trailer truck

,

howo tractor truck

SINOTRUK HOWO Tow Tractor Truck LHD 6x4 371HP Flat roof cabin air suspension



Description:



SINOTRUK HOWO Tow Tractor Truck LHD 6x4 371HP Flat roof cabin air suspension

HW series heavy yupe transmission is a new generation well-crafted product developed by SINOTRUK specially for the heavy duty truck, SINOTRUK own the independent intellectual property rights for it, with its unique structure home and aboard, its primary transmission adopts twin cuntershaft structure and auxiliary transmission adopts planetary deceleration structure, which make its bearing capacity stronger and its structure more reliable. The integrated small housing design allows legible gear and flexible gear shift.



Presently, this type of transmission is applied to be engine for the heavy duty truck which power range is 336--420 ps, it is the first choice for the domestic heavy duty truck.



CNHTC owns several national patents for aluminum alloy fuel tanks and is the first manufacturer starting the mass production. The product quality is well guaranteed by the most advanced welding production line and full-process monitoring over the welding. Presently, the tank capacity includes 200L, 240L, 250L, 350L, and 400L and the round, D-shaped and square structure shapes can meet the different customers' demands. The aluminum alloy fuel tank is featured in light weight, high strength and excellent corrosion resistant performance to avoid the tank internal corrosion, enhance the fuel clearning degree and prolong the service life of engine.



Specification:



SINOTRUK HOWO Tow Tractor Truck LHD 6x4 371HP Flat roof cabin air suspension

Model ZZ4257S3241W
Drive Type 6×4
Engine

D12.38 , 380HP( Euro II)

6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

Displacement : 11.596L

Cabin HW76(with single sleeper, air-conditioner and new-style seat)
Transmission HW19710(10 forwards & 2 reverses)
Front Axle 1×HF9 ( 9 Tons)
Driving Axle HC16, 16Tons
Steering ZF8098 hydraulic steering with power assistance.
Clutch

Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating

with air assistance

Rim/ Tire

12R22.5 tubeless tyre

11.00R20,12.00R20,12.00R24 Radial tire
Wheel base 3200+1350(mm)
Overall dimension

6800×2496×2958(mm)

Fifth Wheel

#50, #90

The curb weight 9180(Kg)
Gross weight 25000 kg
Max. speed 102km/h
Color White, red, green, golden and so on.




Applications:



It’s suitable for towing all kinds semi trailer which is used in Logistics business, construction site and

Mining area .



Competitive Advantage:



1.We are professional manufacturers to do the special vehicles ,such as fire truck ,

wrecker tow truck, aerial work platform truck, water tank truck, fuel tank truck ,refrigerator truck,mixer
truck, truck with crane ,garbage truck ,vacuum sewage suction truck,etc .
2.We are supply all brands special truck of SINOTRUK
3.the drive type could be 4x2 , 4x4 , 6x2 , 6x4 , 6x6 , 8x4
4.We can provide LHD (left hand drive) or RHD (right hand drive) vehicles .

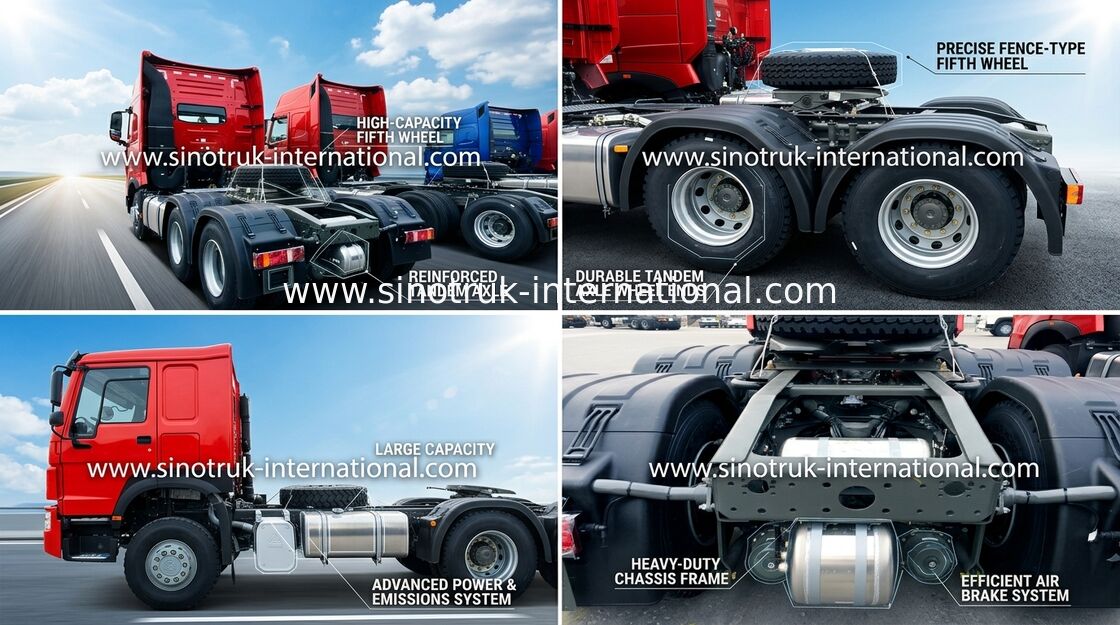

Tow Tractor Trailer Truck LHD 6x4 371HP Flat Roof Cabin SINOTRUK HOWO Truck 0Tow Tractor Trailer Truck LHD 6x4 371HP Flat Roof Cabin SINOTRUK HOWO Truck 1
