Name: SINOTRUK 300 HP 4×2 Compressed Garbage Truck with 30T Rolling Force for Efficient Waste Management
Brand: SINOTRUK INTERNATIONAL CO., LTD.
SKU: ZZ1167N4617B1R
Price: 43,750.00 USD
Availability: InStock

Nhà Sản phẩm Xe tải thu gom rác

SINOTRUK 300 HP 4×2 Compressed Garbage Truck with 30T Rolling Force for Efficient Waste Management

Thông tin chi tiết sản phẩm:

Nguồn gốc:	Trung Quốc
Hàng hiệu:	SINOTRUK
Chứng nhận:	ISO/3C/BV/IFA/SGS
Số mô hình:	ZZ1167N4617B1R

Thanh toán:

Số lượng đặt hàng tối thiểu:	1 ĐƠN VỊ
Giá bán:	có thể đàm phán
chi tiết đóng gói:	tẩy lông
Thời gian giao hàng:	trong vòng 30 ngày làm việc
Điều khoản thanh toán:	T/T
Khả năng cung cấp:	3000 đơn vị mỗi tháng

Tiếp xúc

Chi tiết sản phẩm

Mẫu động cơ:	WP10.300E22	Loại ổ đĩa:	4×2 RHD
người mẫu:	ZZ1167N4617B1R	Ổ đĩa:	ST16
Trục trước:	VGD71
Làm nổi bật:	300 HP Compressed Garbage Truck , 4×2 Drive Garbage Collection Truck , 30T Rolling Force Waste Management Truck

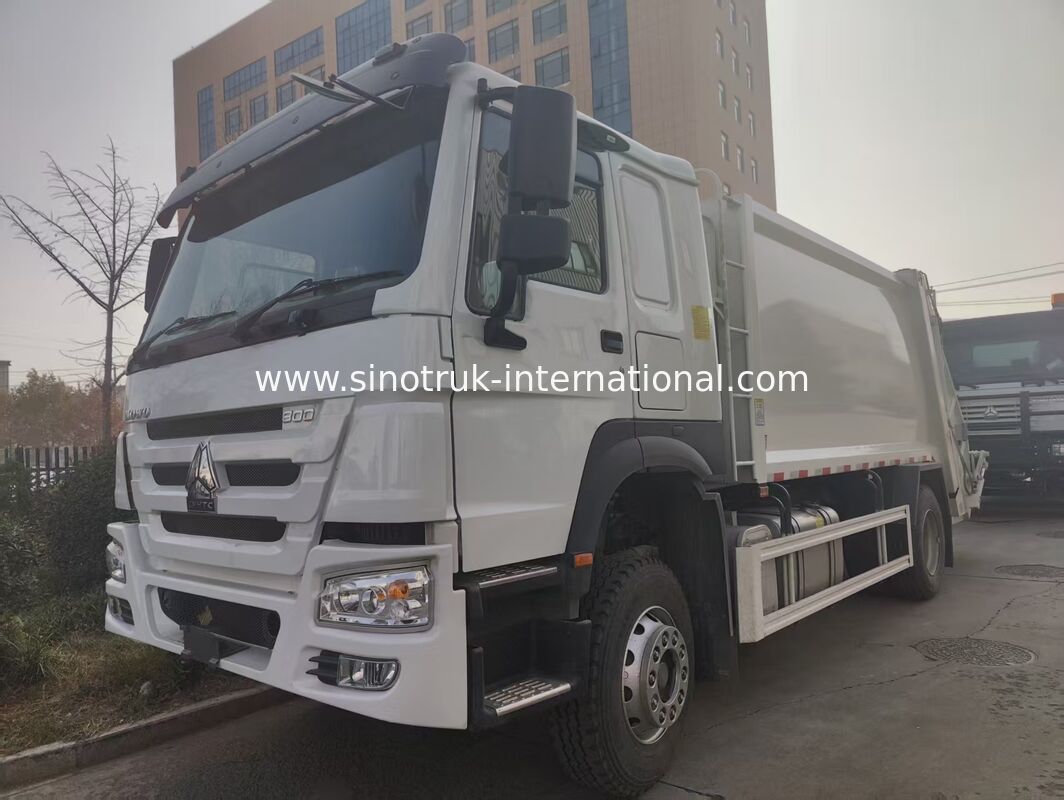

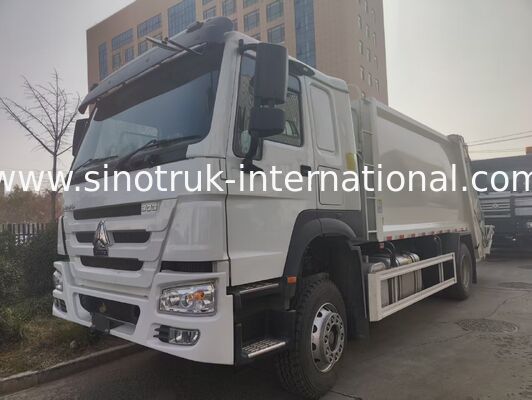

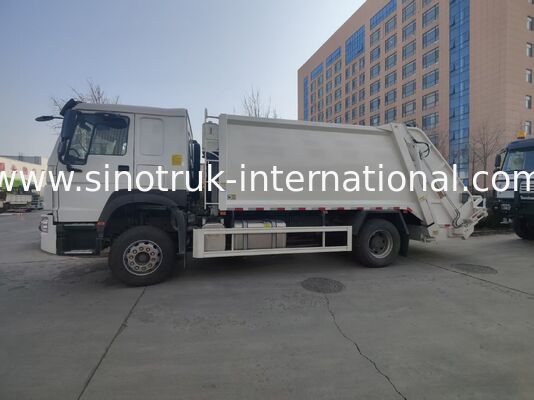

SINOTRUK 4*2, 300 HP Compressed Garbage Truck

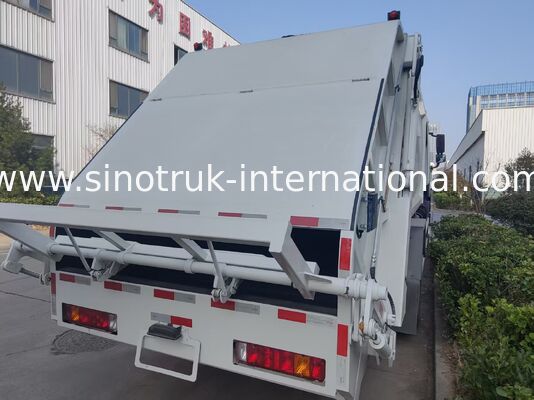

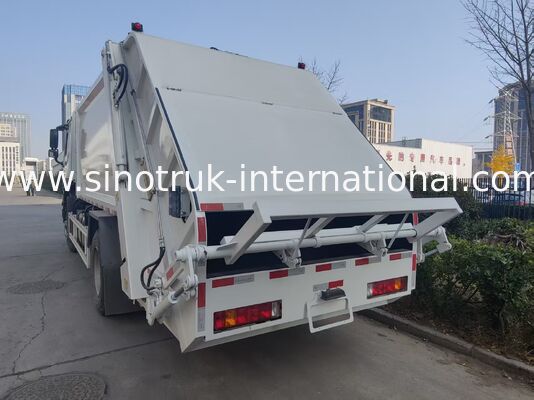

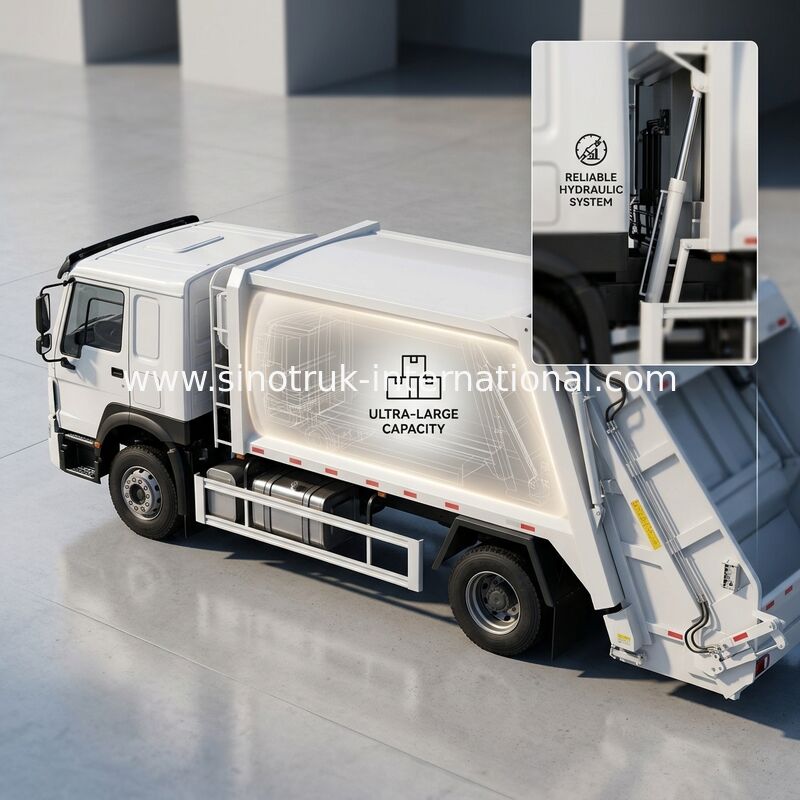

This compressed garbage truck features a main compartment connected to a collection box at an optimized angle, paired with a blade-type main push plate. The collection box's filling mechanism has a specially designed parabolic surface, generating over 30T rolling force and an optimal loading angle.

The compression chamber provides 10T loading pressure with a continuous 5T squeezing force, ensuring compacted garbage is easily discharged from the main compartment. The overall volume utilization rate reaches over 97%.

Operation & Performance Features

Operation Modes: Hydraulically driven and electronically controlled for precision and reliability. Supports automatic continuous work, semi-automatic one-way operation, and manual control with reset function.
Hydraulic System Parameters:
- Max working pressure: 210bar
- System working pressure: 180bar
- Collection box rolling force: 30T
- Loading force (collection box to main compartment): 10T
- Main push plate squeezing force: 5T; unloading thrust: 10T
- Loading compression cycle time: ≤25s
- Discharge cycle time: ≤45s

Technical Specifications

Compressed Garbage Collection Truck SINOTRUK 10-12CBM LHD 4X2 ZZ1167N4617B1R

Chassis Model	ZZ1167N4617B1R
Drive Type	4*2
Engine	WP10.300E22, Euro2, 300HP
Cabin	L2000 lengthened cab (with one sleeper, air-conditioner and two new-style seat)
Transmission	HW19710 (10 forwards & 2 reverses)
Front Axle	VGD71 (1X7.1Tons)
Driving Axle	ST16 (1X16Tons)
Clutch	Hydraulically operating with air assistance
Rim/Tire	12.00R20 Radial tyre
Wheel base	4300(mm)
Capacity of Cargo body	10-12CBM
Time of cycle	≤25s
Time of discharge	≤40s
Max compression	≥35000kgs
Overall dimension	834024903260(mm)
The curb weight	9500(Kg)
Gross weight	16000 kg
Max. speed	95km/h
Color	White, red, green, golden and so on

Applications

Specialized for collecting and transporting municipal solid waste (MSW) and commercial waste. Suitable for non-toxic, non-corrosive, and non-industrial radioactive waste.

Competitive Advantages

1. Full-function, easy to operate, with large garbage loading capacity

2. Hydraulic + electronic program control for accurate and reliable performance

3. Optimized hydraulic system prevents misoperation, boosting safety and efficiency

4. Ergonomic cabin design with excellent safety and reliability

5. Low fuel consumption for cost-effective operation

6. Diverse models available to meet customized needs

7. Key components adopt world-leading technology and products

8. High-quality and reliable build backed by strong technical support

9. Competitive price with outstanding cost performance

10. Fast and efficient spare parts supply for convenient after-sales service

11. Short delivery time, with production arranged flexibly per customer requirements

12. Professional import & export procedures for efficient customs clearance

Từ khóa:

Người liên hệ: Mr. Aaron White

Tel: +86-13210598479

Fax: 86-531-85865823
