| Place of Origin: | China |
| Hàng hiệu: | SINOTRUK HOWO A7 |
| Chứng nhận: | ISO/3C/BV/IFA/SGS |
| Model Number: | ZZ3257N3847N1 |
| Minimum Order Quantity: | 1 Unit |
|---|---|
| Giá bán: | USD38000-USD42000/UNIT)negotiation |
| Packaging Details: | Nude or Waxing in Roro or bulk ship |
| Delivery Time: | 25 working days after received your advance payment |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 3,000units per month |
| Product Name: | Tipper Dump Truck | Model: | ZZ3257N3847N1 |
|---|---|---|---|
| Drive type: | LHD 6X4 | Emission Standard: | Euro 2 |
| Engine: | WD615.69, 336HP | Loading capacity: | 60 - 70 tons |
| Làm nổi bật: | heavy dump truck,sinotruk howo dump truck |
||

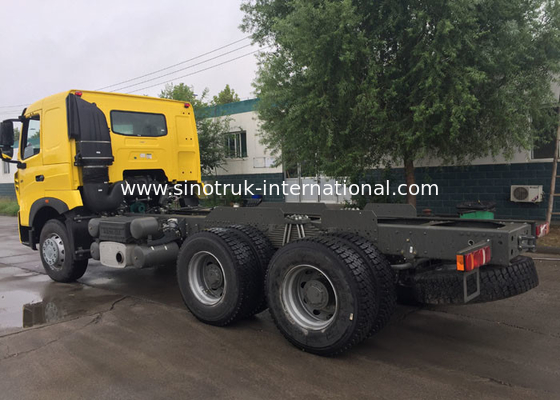

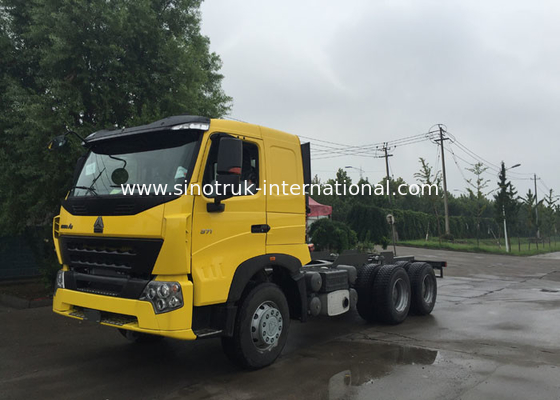

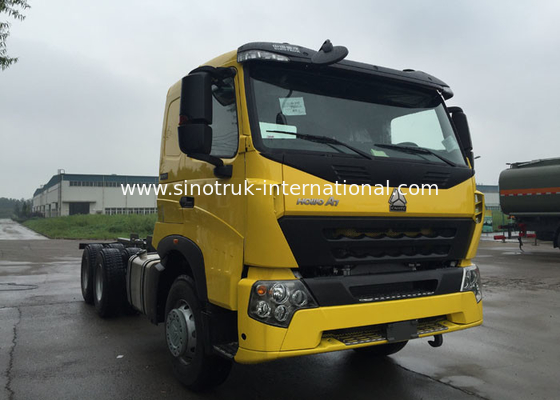

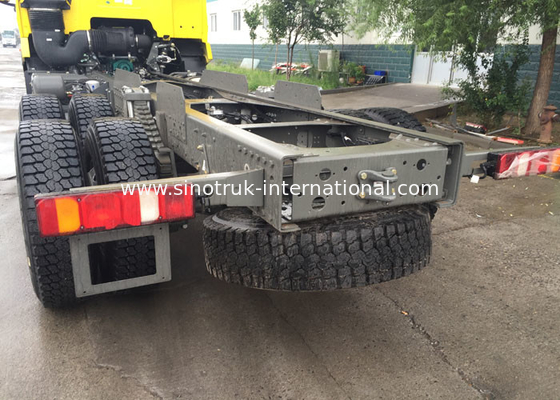

SINOTRUK HOWO A7 Tipper Dump Truck 30 - 40 Tons For Construction or Mining Industry
Description:
SINOTRUK HOWO A7 Tipper Dump Truck 30 - 40 Tons For Construction or Mining Industry
This model can meet the requirements of severe environment like construction site and
mining area.which can fullfiled you of short distance transportation of mining rock and
soil as well as engineering construction.
Be comprehensive with Euro2 and Euro3 engine equipped.
Driving type: 4×2, 4×4 6×2, 6×6 ,6×4, 8×4 and so on. Power range: 266HP - 420HP.
High Level Comfortable:Cabin 4 point full -floating air suspension ,adjustable steering wheel with various heightsand angles.air suspension seat, Cruise Constant Speed System,MINI Player .electrical control glass and mirror,ATM Gearbox bunk with AC.
This type product , with features of reliable structure , high loading capacity which can
load 30-60tons,strong power from 266HP to 420HP,reliable performance and wide
acceplication.
Specifications:
| Tipper Dump Truck SINOTRUK HOWO A7 30-40tons for Mining industry ZZ3257N3847N1 | ||||
| Model | ZZ3257N3847N1 | |||
| Drive Type | 8×4 | |||
| Engine |
|
|||
| Cabin | A7-W lengthened cab(with one sleeper, air-conditioner and new-style seat) | |||
| Transmission | HW19710(10 forwards & 2 reverses) | |||
| Front Axle | 1×HF9 ( 9 Tons) | |||
| Driving Axle | HC16, 16Tons | |||
| Steering | ZF8118 hydraulic steering with power assistance. | |||
| Clutch |
Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with air assistance |
|||
| Rim/ Tire | 11.00R20,12.00R20,12.00R24 Radial tire | |||
| Wheel base | 3800+1350(mm) | |||
| Overall dimension | 8575×2496×3450(mm) | |||
| Cargo body | 5800×2300×1500(mm),Bottom:8mm, Side:6mm | |||
| The curb weight | 12300(Kg) | |||
| Gross weight | 25000 kg | |||
| Max. speed | 75km/h | |||
| Color | White, red, green, golden and so on. |
|||
Applications:
working for Mining industry, Construction business, docks, to transport soil, sand, stones and so on.
Competitive Advantage:
1) Optimized cargo body structure,light weight,high rigidity,large loading capacity
2) Using the high strength steel,it has long service life
3) Optimized the sealing structure has the better sealing effect.
4)The intelligent hydraulic control system helps to avoid error operation, it has higher safety and
running efficiency.
5) Multiple box structures and device selections
6) strong power and low fuel consumption
7) quick delivery time
8) fast and enough spare parts supply
9) speicalize maintainace service
10) competive price, cost-effective
11) fast delivery time, we can arange production according to your needs exactly and quickly
12) professional import and export dealing precedure, make customs clearance more high efficiency
