Electronic Key Tipper Dump Truck SINOTRUK HOWO Euro 2 Standard WD615.47 371 HP Engine

Electronic Key Tipper Dump Truck SINOTRUK HOWO Euro 2 Standard WD615.47 371 HP Engine
Electronic Key Tipper Dump Truck SINOTRUK HOWO Euro 2 Standard WD615.47 371 HP Engine Electronic Key Tipper Dump Truck SINOTRUK HOWO Euro 2 Standard WD615.47 371 HP Engine Electronic Key Tipper Dump Truck SINOTRUK HOWO Euro 2 Standard WD615.47 371 HP Engine Electronic Key Tipper Dump Truck SINOTRUK HOWO Euro 2 Standard WD615.47 371 HP Engine

Hình ảnh lớn :  Electronic Key Tipper Dump Truck SINOTRUK HOWO Euro 2 Standard WD615.47 371 HP Engine

Thông tin chi tiết sản phẩm:

Place of Origin: China
Hàng hiệu: SINOTRUK HOWO A7
Chứng nhận: ISO/3C/BV/IFA/SGS
Model Number: ZZ3257N3447N1

Thanh toán:

Minimum Order Quantity: 1 Unit
Giá bán: USD38000-USD42000/UNIT)negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship
Delivery Time: 25 working days after received your advance payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3,000units per month
Chi tiết sản phẩm

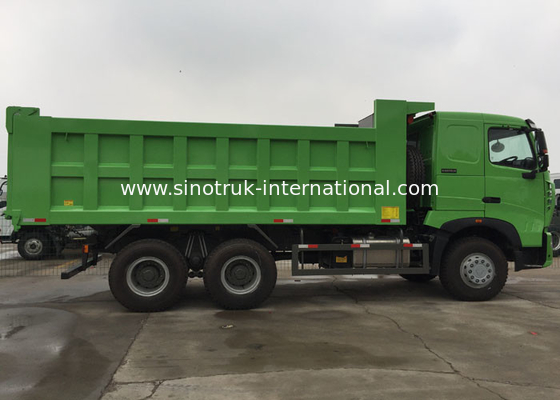

Product Name: Tipper Dump Truck Model: ZZ3257N3447N1
Drive type: RHD 6X4 Emission Standard: Euro 2
Engine: WD615.47, 371HP Cargo body: 5400*2300*1400mm
Loading capacity: 30-40tons Cabin: A7-P
Transmission: HW19710, 10 forwards, 2 backwards
Điểm nổi bật:

heavy dump truck

,

commercial dump truck

Dump Truck SINOTRUK HOWO A7 30 - 40tons RHD 6X4 air suspension, electronic key



Description:

Dump Truck SINOTRUK HOWO A7 30 - 40tons RHD 6X4 air suspension, electronic key

The intelligent hand HOWO-A7 heavy truck standard from one AMT, is the latest achievement of China heavy duty truck and WABCO company to develop, has opened a new era Chinese heavy truck technology. Chinese truck for product registration "intelligent truck tiptronic" Chinese registered trademark "Smartshift" and the registered trademark. Running as one has rich driving experience of older drivers in operation, make Chinese users enjoy advanced international high-end heavy truck operator comfort. According to experts, from the design perspective, and automobile industry AT, AMT mechanical gearbox through electronic control automatic shifting, generally more fuel-efficient 3-5%. manual box.



AMT is the international high-end heavy truck standard technology, 58% European truck equipped with automatic shift mode AMT.AMT gearbox is provided based on maximum power output, and with manual shift function, crawling function and economic function.



This model can meet the requirements of severe environment like construction site and

mining area.which can fullfiled you of short distance transportation of mining rock and

soil as well as engineering construction.



It is super art in domestic and abroad auto field, full expression of heavy duty truck concept. Delicate design, excellent technology, which will dazzle you as groundbreaking works

optional of driving axle: HC16 or AC16,

Equipped with Euro2, Euro3 and Euro4 emission standard engine.

Driving type: 4×2, 4×4 6×2, 6×6 ,6×4, 8×4 etc. Power range: 266PS -420PS.





Specifications:




Dump Truck SINOTRUK HOWO A7 Front Lifting Hydraulic system 30 - 40tons RHD 6X4
Model ZZ3257N3447N1
Drive Type 8×4
Engine

WD615.47 , 371HP( Euro II)

6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

Displacement : 9.726L

Cabin A7-P lengthened cab(with one sleeper, air-conditioner and new-style seat)
Transmission HW19710(10 forwards & 2 reverses)
Front Axle 1×HF9 ( 9 Tons)
Driving Axle HC16, 16Tons
Steering ZF8118 hydraulic steering with power assistance.
Clutch

Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with

air assistance

Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
Wheel base 3400+1350(mm)
Overall dimension 8175×2496×3450(mm)
Cargo body 5400×2300×1400(mm),Bottom:8mm, Side:6mm
The curb weight 12300(Kg)
Gross weight 25000 kg
Max. speed 75km/h
Color White, red, green, golden and so on.



Applications:



working for Mining industry, Construction business, docks, to transport soil, sand, stones and so on.



Competitive Advantage:



1) Strong technology development strength and product supporting system

2) AMT transmission

3)competive price, cost-effective
4)quick and efficient spare parts supply bring you more convenient
5)fast delivery time, we can arange production according to your needs exactly and

quickly

6) professional import and export dealing precedure, make customs clearance more high efficiency

7)low fuel consumption
8) strong enough engine

9)with all kinds of truck model, which can fulfil your requirement
10)the key parts adopt the world's top technology products
11)based on strong technical support and top level technology make the trucks with high

quality and more reliable

12)Optimized cargo body structure,light weight,high rigidity,large loading capacity

13)Using the high strength steel,it has long service life

14)Optimized the sealing structure has the better sealing effect.

15)The intelligent hydraulic control system helps to avoid error operation, it has higher safety and

running efficiency.

16)Multiple box structures and device selections
