266HP 10 Wheels Tipper Dump Truck RHD T Type Lifting High Loading Capacity

Trung Quốc SINOTRUK INTERNATIONAL CO., LTD. Chứng chỉ
Trung Quốc SINOTRUK INTERNATIONAL CO., LTD. Chứng chỉ
We are really glad to cooperate with your company. And when we come together, There is nothing we can't do, there is no battle we can't win.

—— Francis Aflakpui

The best of quality with reasonable price and professional service give us deep impression.

—— Joseph Atta Asante

Money is not everything. Between us the most important thing is Friendship, Cooperation and Credit.

—— Hasan Ali

The most important thing in any relationship is not what you get but what you give. In any case, the giving of trustworthin is an education in itself.

—— Krasen Jelyazkov

I love to come to China, and love to visit your company, because it's just like go home!

—— Maxim Batuev

Tôi trò chuyện trực tuyến bây giờ

266HP 10 Wheels Tipper Dump Truck RHD T Type Lifting High Loading Capacity

266HP 10 Wheels Tipper Dump Truck RHD T Type Lifting High Loading Capacity
266HP 10 Wheels Tipper Dump Truck RHD T Type Lifting High Loading Capacity 266HP 10 Wheels Tipper Dump Truck RHD T Type Lifting High Loading Capacity 266HP 10 Wheels Tipper Dump Truck RHD T Type Lifting High Loading Capacity 266HP 10 Wheels Tipper Dump Truck RHD T Type Lifting High Loading Capacity

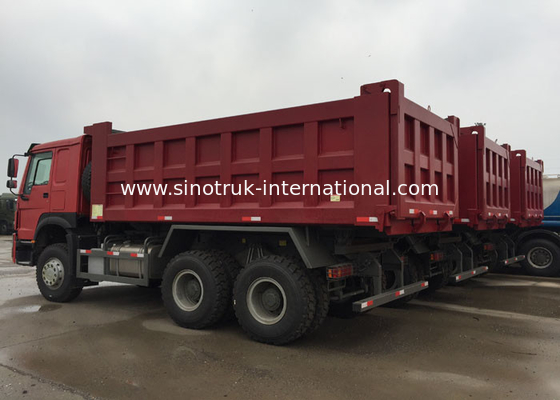

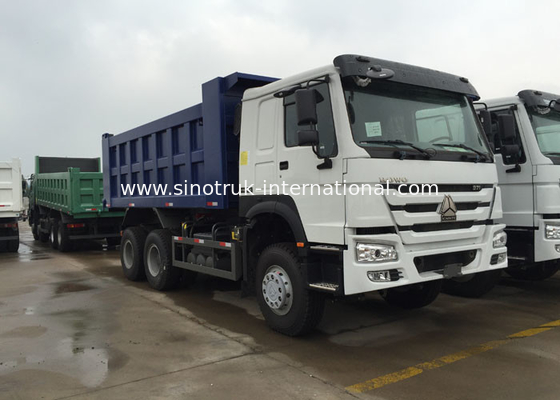

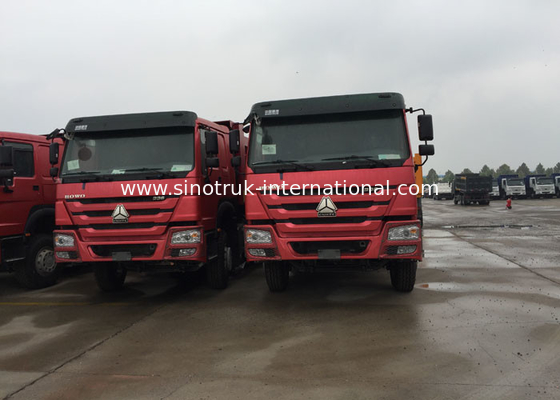

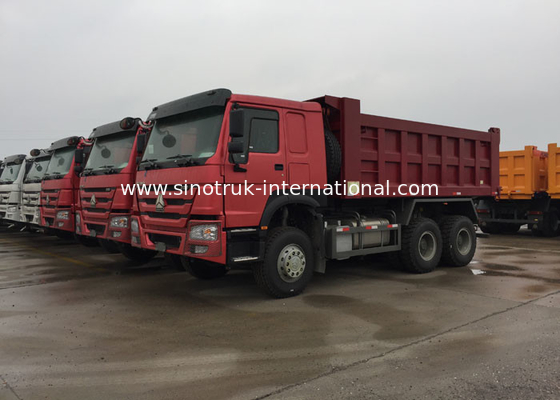

Hình ảnh lớn :  266HP 10 Wheels Tipper Dump Truck RHD T Type Lifting High Loading Capacity

Thông tin chi tiết sản phẩm:

Place of Origin: China
Hàng hiệu: SINOTRUK HOWO
Chứng nhận: ISO/3C/BV/IFA/SGS
Model Number: ZZ3257M3247W

Thanh toán:

Minimum Order Quantity: 1 Unit
Giá bán: USD38000-USD42000/UNIT)negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship
Delivery Time: 25 working days after received your advance payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3,000units per month
Chi tiết sản phẩm
Product Name: Tipper Dump Truck Model: ZZ3257M3247W
Drive type: LHD 6X4 Emission Standard: Euro 2
Engine: WD615.87, 290HP Cargo body: 5200*2300*1500mm
Loading capacity: 30-40tons Lfiting type: T type Middle hydraulic cylinder
Thickness of cargo body: bottom:8mm, side: 6mm Transmission: HW15710
Điểm nổi bật:

sinotruk howo dump truck

,

commercial dump truck

Dump Truck SINOTRUK HOWO 266HP 10 Wheels RHD 10-25CBM 30-40tons T type lifting



Description:



Dump Truck SINOTRUK HOWO 266HP 10 Wheels RHD 10-25CBM 30-40tons T type lifting

Since February 2010, two young technical personnel dispatched by truck shares, the 6 consecutive month to travel overseas for more than 10 times, the cumulative held lectures and technical advisory services. Dozens of overseas customer service in Venezuela, two technical personnel in order to better serve users for exporters, they adhere to the "English as the guide, with pictures process for the media, to learn the local language, eliminate communication barriers, constantly learning, improve teaching methods more intuitive, more detailed, and gradually make the Chinese heavy truck overseas users to more accurately grasp the HOWO -A7 products, technical characteristics, structure principle, operation essentials, maintenance tips", as the country's agent. Direct service providers and users soon brought up a convenient localization technology consulting and customer service service team.



Overseas users heartfelt words through a long-distance telephone, e-mail constantly from the other side of the ocean to China heavy import and export company came. Two technical personnel China heavy duty truck company, with their solid technical strength and sincere service attitude, with Chinese heavy truck 500 HOWO heavy truck arrived in Venezuela, Venezuela by user sincere praise.





Specification:



Dump Truck SINOTRUK HOWO 266HP 10 Wheels RHD 10-25CBM 30-40tons T type lifting
Model ZZ3257M3247W
Drive Type 6×4
Engine

WD615.87 , 290HP( Euro II)

6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

Displacement : 9.726L

Cabin HW76 lengthened cab(with one sleeper, air-conditioner and new-style seat)
Transmission HW13710(10 forwards & 2 reverses)
Front Axle 1×HF9 ( 9 Tons)
Driving Axle HC16, 16Tons
Steering ZF8118 hydraulic steering with power assistance.
Clutch

Single-plate dry coil-spring clutch, diameter 430mm, hydraulically

operating with air assistance

Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
Wheel base 3200+1350(mm)
Overall dimension 8075×2496×3450(mm)
Cargo body

5200×2300×1500(mm),Bottom:8mm, Side:6mm

The curb weight 12200(Kg)
Gross weight 25000 kg
Max. speed 75km/h
Color White, red, green, golden and so on.




Applications:



It used for Mining industry, Construction business, docks and so on.



Competitive Advantage:



1) competive price, cost-effective

2) reliable quality

3) good after slaes service, which can send engineers for traning and maintainance

4) all kinds of cargo body structure can be designed and produced according to your request,

make it have light curb weight , high rigidity , high loading capacity

5) The optimized hydraulic control system helps to avoid wrong operation, it has higher

safety and running efficiency.

6) low fuel consumption

7) strong enough engine
8) with all kinds of truck model, which can fulfil your requirements

9) using the high strength steel, make it has a long service life

10) fast delivery time, we can arange production according to your needs exactly and quickly

11) professional import and export dealing precedure, make customs clearance more high efficiency

12) excellant apperance of cabin, safety, reliable

13) quick and efficient spare parts supply bring you more convenient

14) you can choose cargo body with Front lifting type or Middle lifting type which you prefered

15) The hydraulic sytem using HYVA brand or Domestic famouse brand



266HP 10 Wheels Tipper Dump Truck RHD T Type Lifting High Loading Capacity 0266HP 10 Wheels Tipper Dump Truck RHD T Type Lifting High Loading Capacity 1
