Low-bed Semi Trailer Truck 3 Axles 60Tons 15m for Loading construction machine

Trung Quốc SINOTRUK INTERNATIONAL CO., LTD. Chứng chỉ
Trung Quốc SINOTRUK INTERNATIONAL CO., LTD. Chứng chỉ
We are really glad to cooperate with your company. And when we come together, There is nothing we can't do, there is no battle we can't win.

—— Francis Aflakpui

The best of quality with reasonable price and professional service give us deep impression.

—— Joseph Atta Asante

Money is not everything. Between us the most important thing is Friendship, Cooperation and Credit.

—— Hasan Ali

The most important thing in any relationship is not what you get but what you give. In any case, the giving of trustworthin is an education in itself.

—— Krasen Jelyazkov

I love to come to China, and love to visit your company, because it's just like go home!

—— Maxim Batuev

Tôi trò chuyện trực tuyến bây giờ

Low-bed Semi Trailer Truck 3 Axles 60Tons 15m for Loading construction machine

Low-bed Semi Trailer Truck 3 Axles 60Tons 15m for Loading construction machine
Low-bed Semi Trailer Truck 3 Axles 60Tons 15m for Loading construction machine Low-bed Semi Trailer Truck 3 Axles 60Tons 15m for Loading construction machine Low-bed Semi Trailer Truck 3 Axles 60Tons 15m for Loading construction machine Low-bed Semi Trailer Truck 3 Axles 60Tons 15m for Loading construction machine

Hình ảnh lớn :  Low-bed Semi Trailer Truck 3 Axles 60Tons 15m for Loading construction machine

Thông tin chi tiết sản phẩm:

Place of Origin: China
Hàng hiệu: SINOTRUK
Chứng nhận: ISO/3C/BV/IFA/SGS
Model Number: 3 Axles 50-80Tons

Thanh toán:

Minimum Order Quantity: 1 Unit
Giá bán: Negotiation
Packaging Details: Nude or Waxing in Roro or bulk ship, or by 40GP, 40HQ,40FR and so on
Delivery Time: 20 working days after received your advance payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 4,000units per month
Chi tiết sản phẩm
Product Name: Low-bed Semi Trailer Truck Model: 3 Axles 50-80Tons
Fifth Wheel: #50, #90 Loading capacity: 50-80tons
Dimension of Flat: 12000*3000mm Axles: 3X16 tons
Material: Carbon steel or Mn steel Landing gear: 28T JOST
Điểm nổi bật:

Semi Trailer Dump Truck

,

semi flatbed trailers

Description:



Low-bed Semi Trailer Truck 3 Axles 60Tons 15m for Loading construction machine

Our company semi trailer truck series,is applied to the transportation of all kinds of

mechanical equipment, big size articles,road construction equipment ,big size tank body

power station equipment and all kinds  of steels .widely using ,high efficiency .whole

vehicle adopts advanced computer aided design for  optimization design ,flexible and

various ,to design carrying flat according to the requirements of  customers.to meet

various of special goods transportation needs.



Specification:



Low-bed Semi Trailer Truck 3 Axles 60Tons 15m for Loading construction machine

Model 3 Axles 60Tons
Axle

FUWA brand, 16ton, 2 Sets

Main beam

Beam height: 500mm

Upper plate: 10mm

Double Middle plate: 6 mm

Down plate: 12mm

Dimension of Flat

12000*3000*6mm

Material

Carbon steel or Mn steel

Gross vehicle weight

75000kgs

King pin

#90

Support leg

JOST Standard 28T

Suspension

Normal suspension

Thickness leaf spring

10/10/10

Tire/Rim

1200R20, 13pcs, 8.5, 12 pcs

Brake Chamber

Standard 6 pcs

Spare wheel carrier

2 pcs

Tool box

1 pcs

Electrical System

Chinese standard 24C lighting system

Side Maker Lamp

LED lamp

Painting

Polyurethane Paint

Overall dimension

16000×2500×3880(mm)

Color White, red, green, golden and so on.




Applications:



Low bed semi trailer for a variety of mechanical equipment, large objects, highway construction  equipment, large tanks, power station equipment for various steel transportation.



Competitive Advantage:



1)Our company produces low flat semitrailer divided into flat, concave beam and tire exposed structure,  beam adopts flat type or goose neck. The frame is ladder type, the beam cross-section is

 I-shaped, has high anti breaking strength and bearing capacity.

2)The main plane of the frame is low, which ensures the smooth transportation, and is suitable for  carrying all kinds of engineering machinery, large equipment and steel.

3)Using three axis balance, double axis balance or rigid suspension, the mass balance block is arranged between the front and rear leaf springs.

4)the key parts adopt the world's top technology products

5)based on strong technical support and top level technology make the trucks with high quality and more reliable

6)competitive price, cost-effective

7)quick and efficient spare parts supply bring you more convenient

8)fast delivery time, we can arrange production according to your needs exactly and Quickly

9)professional import and export dealing procedure, make customs clearance more high efficiency

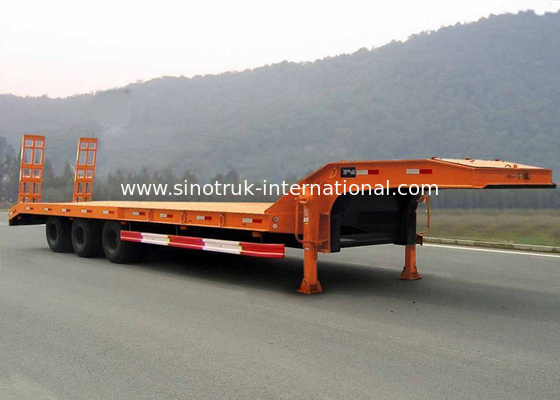

Low-bed Semi Trailer Truck 3 Axles 60Tons 15m for Loading construction machine 0

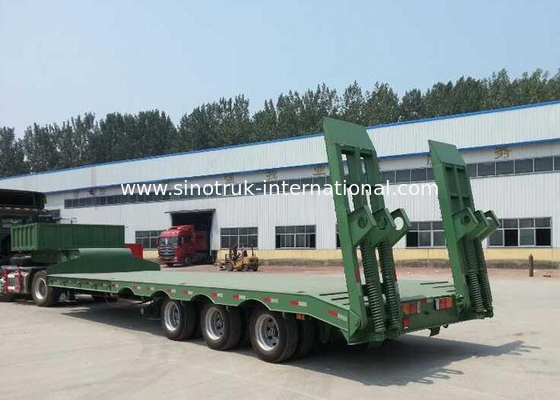

Low-bed Semi Trailer Truck 3 Axles 60Tons 15m for Loading construction machine 1
